Technical Specifications

The details that keep us connected.

Scroll down the see the components of our smart bus stop.

Sign

for ADA compliant communications, full customization & emergency service support.

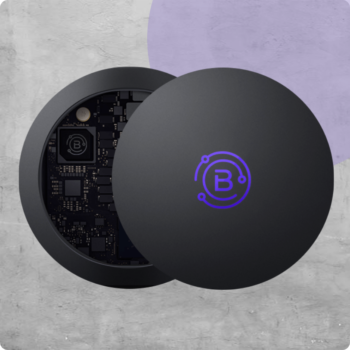

Sensors

for passenger boarding analytics, people counting, communications, environmental conditions and AI audio/visual analysis.

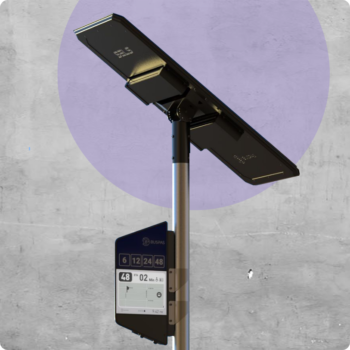

Solar Panel

for off-grid power options, reduced energy demand and on-site processing power.

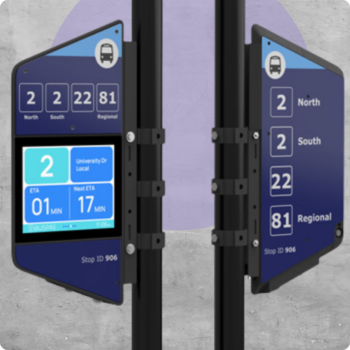

Sign Specifications

Smart Bus Stop

Size: 27.1” (H) x 12.8” (W) x 1.46” (D)
Weight: 15 lbs
Active Screen Size: 13.3” diagonal.Resolution: 1600 x 1200, Glass TFT

Embedded Edge Computing Unit: NVIDIA Orin processor optimized for AI software and cloud-native workflows.
Solar-powered smart sensors built-in
Interactive Human-Machine Interface: electronic display, camera, microphone, and speakers

Operating Temperature: -30°C to +60°C (-22°F to +140°F)
Storage Temperature: -30°C to +70°C (-22°F to +158°F)
Operating Humidity: 90% non-condensing
Storage Humidity: 80% non-condensing
Reliable; certified to UL standards, compliant to IP65 rating and vandal proof design.

Sound Speakers: Dual high sensitivity
Microphones: 12MP
Camera: 4056 x 3040.
Computer Vision: Powered by NVIDIA DeepStream

High-speed broadband and mobile download networks and low latency
Cellular monitoring – Mobile LTE/4G/5G network.
Wi-Fi sensor - 802.11a/b/g/n/ac (2.4GHz / 5GHz).
Bluetooth 5.0 Sensor Beacon (2.4GHz).

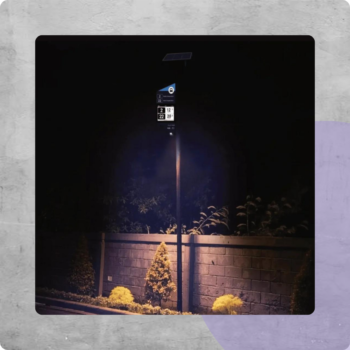

Dimmable 5W with 500 lumens
Multiple CCT and CRI configurations available
Motion Sensor – Passive Infrared
Ambient Light Sensor

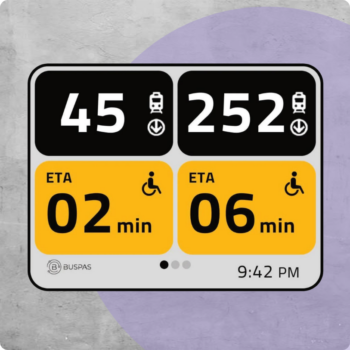

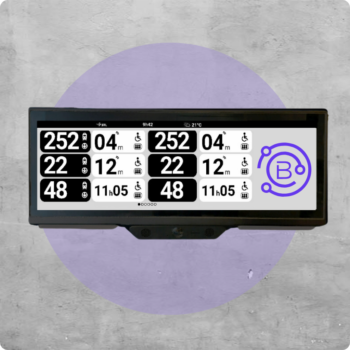

E-Paper Display

High-contrast reflective electrophoretic technology.
Screen LED front light at night
Color: 4096+ colors or 16 grayscales.
ADA Compliance
Non-glare finish with 70% contrast between the background and
actual lettering of on-screen messages
Large and clear text with a maximum 12-point width.
ADA-approved fonts: Times New Roman, Helvetica, and Cabri
Size range for text height: 5/8 – 2 inches.

Powering Options – On/Off Grid

Power supply 12-18 VDC or Via passive PoE
Optional Solar panel, charge controller and battery pack
Possible Autonomy: 3-4 days
Li-ion (Lithium-Ion) with a capacity is 440 Watts-Hour.
CQC GB31241 mandatory safety standard certification.
Operating Temperature: -30°C to +60°C (-22°F to +140°F)
Optional Mounting pole
Automatic charging
Configurable Load Management

Fast mounting on any Pole/Shelter; Secure and Versatile

Casing Materials

Aluminum & Plastic
Vandalism Mitigation: Bonded Glass (Shatterproof)
